Step Over Platforms
- In stock now
- 1,499mm platform height
- 1,318 x 698mm footprint
- UK delivery or collection
A step over platform with a ladder at each end, a chequer plate deck at 1,499mm and handrails along both sides. Built in our Mansfield workshop from S275 mild steel, with fully welded side frames and galvanised ladders.
We hold them in stock. Call us to check availability, choose your finish and get a price for delivery or collection.
Choose Your Size
One standard size, held in stock and ready to go. Need a different height? We build to order.
Step Over Platform, 1,499mm Deck
Ladders at both ends, a chequer plate deck and top and mid rails on both sides.
- 1,499Deck height (mm)
- 2,600Overall height (mm)
- 1,318Length (mm)
- 85kgWeight
Length is overall, including base plates. Need something different? We build to order.
Full Specification
One standard size, held in stock. All dimensions are taken from our production drawings.
| Specification | Step Over Platform |
|---|---|
| Platform height (to deck) | 1,499mm |
| Overall height | 2,600mm |
| Overall length (including base plates) | 1,318mm |
| Overall width (including base plates) | 698mm |
| Clear width between legs | 1,218mm |
| Deck | 3mm durbar chequer plate (4.5mm over pattern), folded |
| Handrails | Top and mid rail on both sides, 42.4 x 2.5mm tube |
| Ladders | One at each end, 4 anti-slip rungs at 300mm centres, 545mm between stiles |
| Side frames | Fully welded, radius bends at the top corners |
| Fixing | Base plate on each leg for bolting to the floor |
| Assembly | Ladders and deck bolt to the side frames with stainless steel fixings |
| Weight | 85kg |
| Material | S275 mild steel |
| Finish options | Self-colour (bare metal), red primer, powder coated or galvanised |

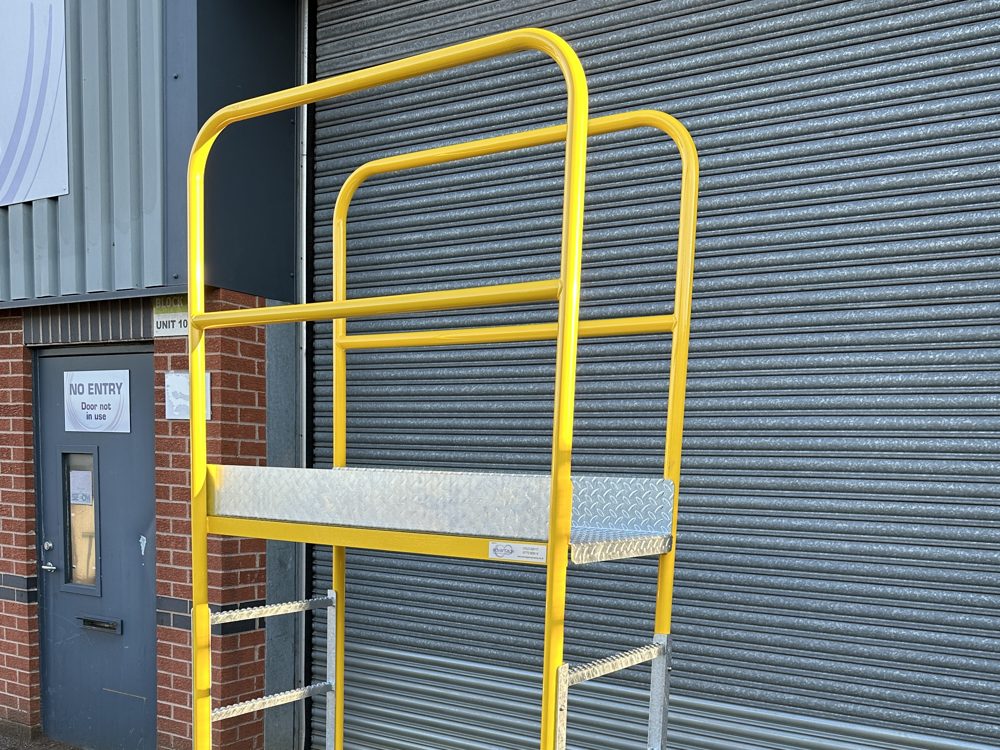

| As shown | Frames powder coated RAL 1023 yellow gloss, galvanised ladders |
| Availability | In stock |
Up One Side, Down the Other
- A galvanised ladder at each end, so you climb up one side, cross the deck and climb down the other.
- Anti-slip rungs at 300mm centres, welded in position.
- 3mm durbar chequer plate deck at 1,499mm.
- Top and mid rails along both sides of the deck.
- Fully welded side frames in 42.4mm steel tube, with radius bends at the top corners.
- Bolt-down base plates on all four legs.
- Stainless steel fixings where the ladders and deck bolt to the frames.
- Your choice of finish: self-colour bare metal, red primer, powder coated or galvanised. The one shown has yellow powder coated frames and galvanised ladders.
How to Order
We do not sell online. A quick call means you get a platform that suits the job, in the right finish, with a firm price for delivery.
-
1
Call 01623 629 117 or send an enquiry. Tell us what you need to cross, how many platforms you need and which finish you want.
-
2
We confirm the platform suits, check stock and give you a price.
-
3
Choose UK delivery, priced on request, or collect from our workshop in Mansfield.
-
4
Your platform is dispatched or made ready for collection. We confirm timings for primed, powder coated or galvanised platforms when you order.
Need a Different Size?
This is our standard size, but it is not the limit. We design and fabricate access platforms to order, so a different deck height, a longer deck or more steps is not a problem.
See our access platform work, or tell us what you need to get over and we will work it out with you.
Step Over Platform FAQs
-
The deck is 1,499mm off the floor and the top rail is 2,600mm. The footprint is 1,318 x 698mm including base plates, and the platform weighs 85kg.
-
We stock one standard size, with 1,218mm clear between the legs. If you need a higher deck, a longer deck or a wider gap underneath, call us and we will build to order.
-
Yes. We hold step over platforms in stock. Call us to check availability.
-
No. We do not sell online. A quick call lets us check the platform suits what you need to cross, confirm the finish and delivery, and give you an accurate price. Call 01623 629 117 or send an enquiry.
-
Yes. We deliver across the UK, priced on request, or you can collect from our workshop in Mansfield.
-
Self-colour bare metal, red primer, powder coated or galvanised. The platform in the photos has frames powder coated in RAL 1023 yellow gloss and galvanised ladders. Tell us the colour you need for powder coating when you enquire.
-
Each of the four legs has a base plate for bolting to the floor.
-
Yes. We design and fabricate access platforms to order, so a different height, length or number of steps is not a problem. Tell us what you need to get over.
